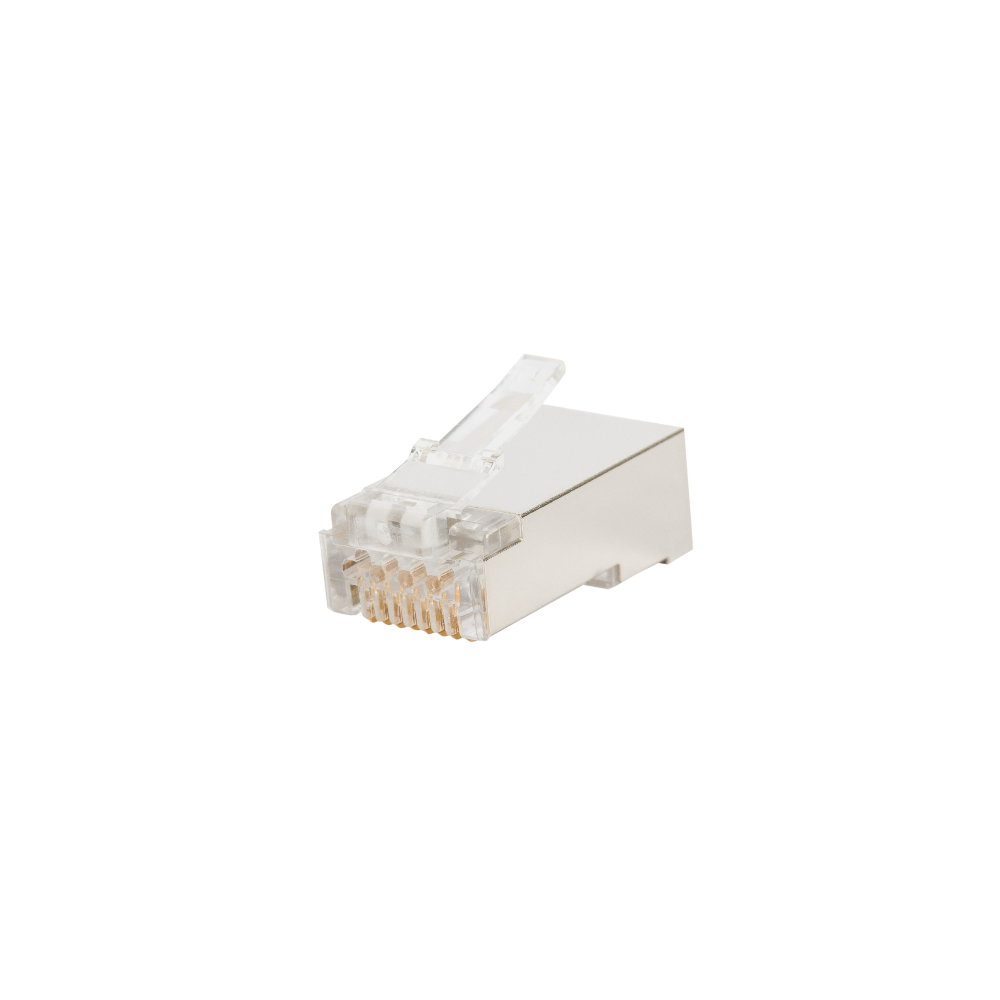

Snap Plug™ STP Cat6A Connector

Time saving feed through design
Meets or Exceeds ANSI/TIA568-D.2
ISO/IEC 11801 Class D ; ANSI/TIA 1096-A ; IEC 60603-7
Supports POE &POH
Insertion/Extraction Life : 2000 Minimum Cycles

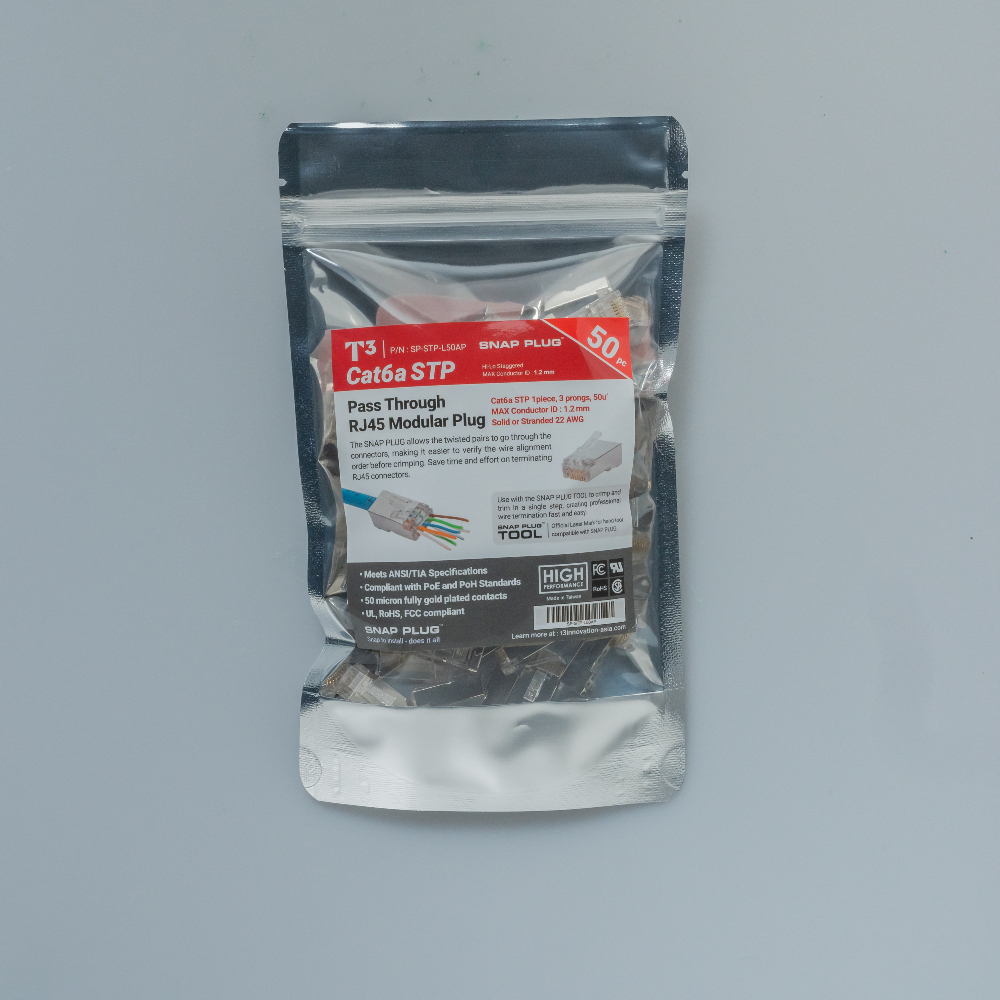

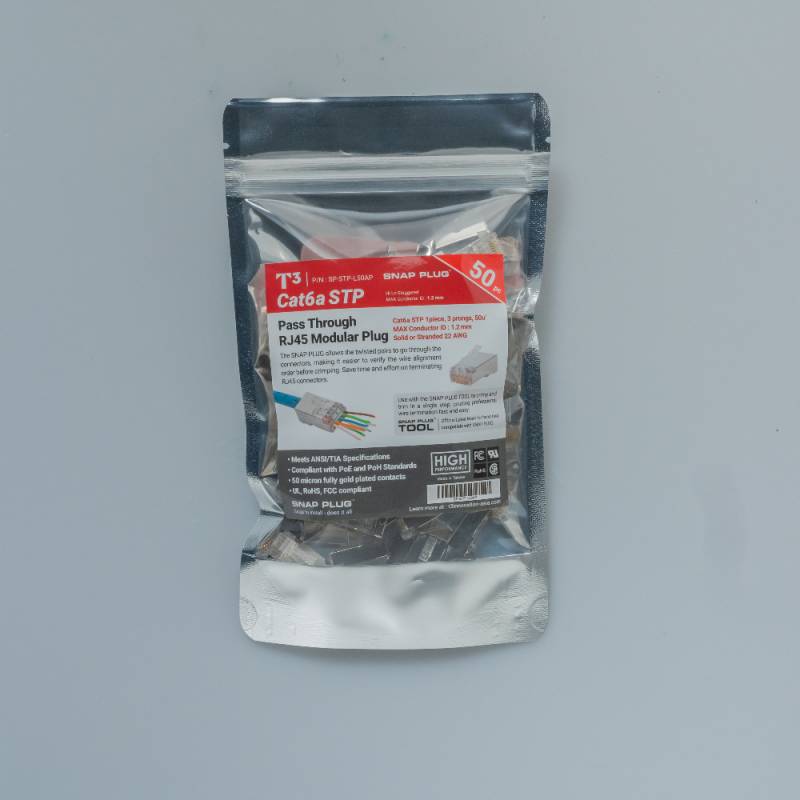

P/N : SP-STP-L50AP

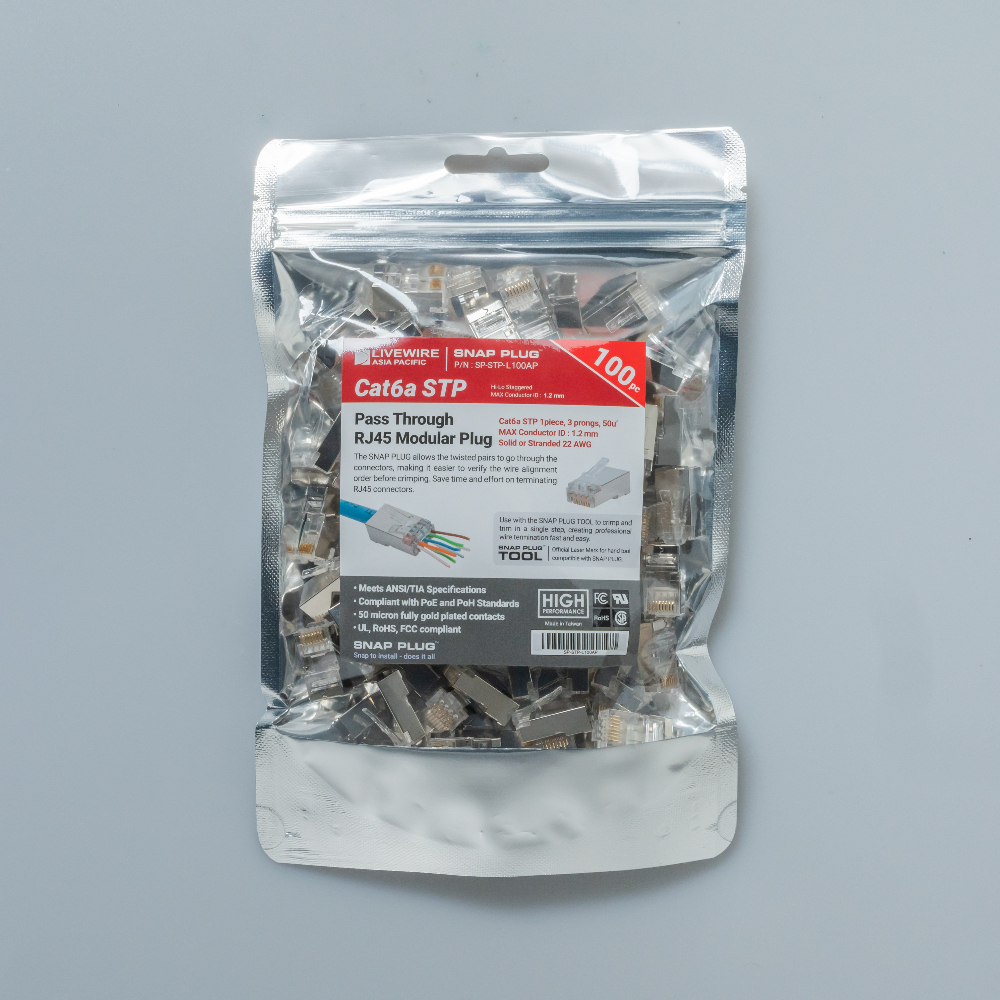

P/N : SP-STP-L100AP

Datasheet

ADD TO INQUIRY

DescriptionContruction & Material

Plug Material : Polycarbonate, UL94V-2 (Optional : UL94V-0)

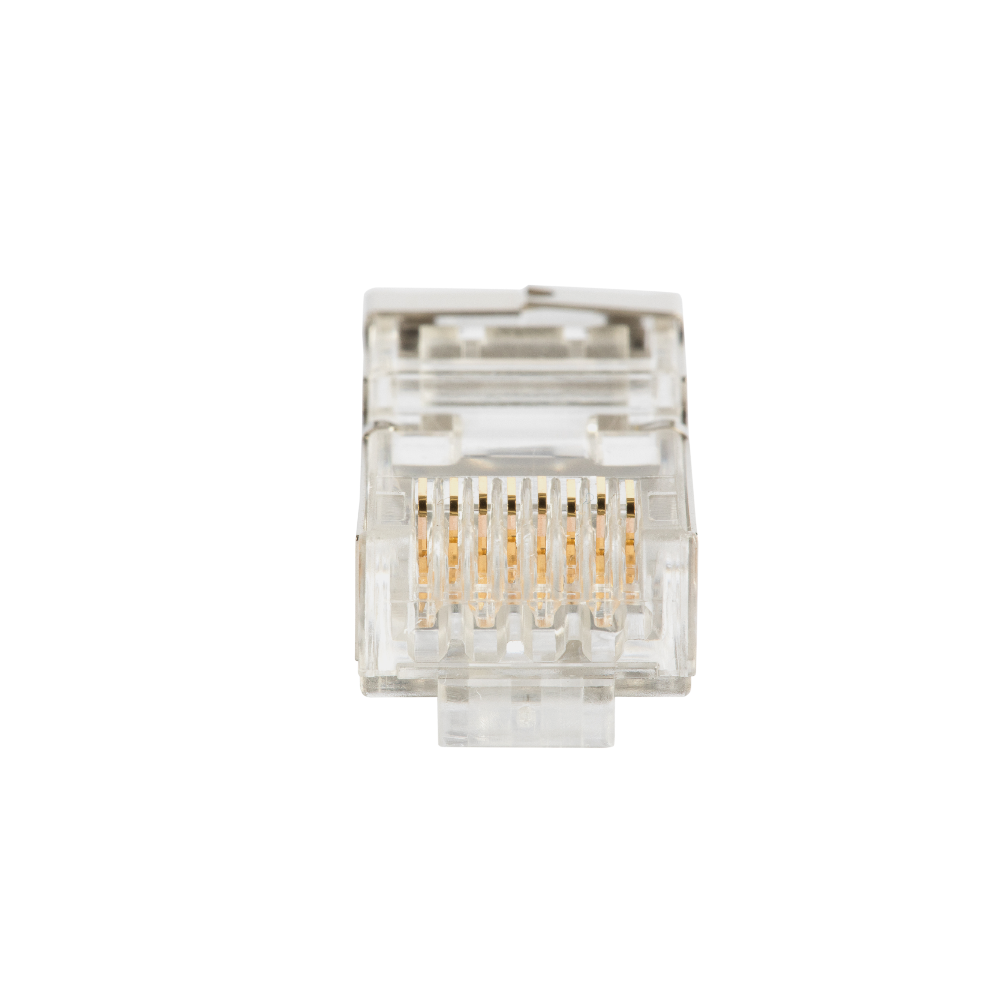

Contact Pin Type : 3-Prong Pins
Contact Material : Phosphor Bronze - .012" thick
Contact Plating : 50μ micron thick 24ct Cold plated over
100μ of nickel plating

Electrical & Safety

Contact Resistance : 20 Milli-Ohms Max
Current / Voltage : 30 VAC / 42 VDC at 1.5 Amps
Operating Temperature : -40℃ to +70℃
Fire Safety : UL 94V-2

product desc

Specification

Max Lan Cable OD：7.0mm
CONDUCTOR ID：MAX 1.2 mm
Shielded / Internal Ground
HI/LO Stagger
Solid or Stranded 23 AWG
